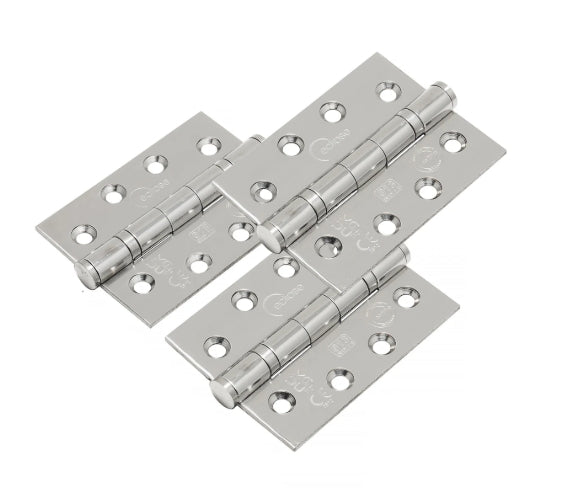

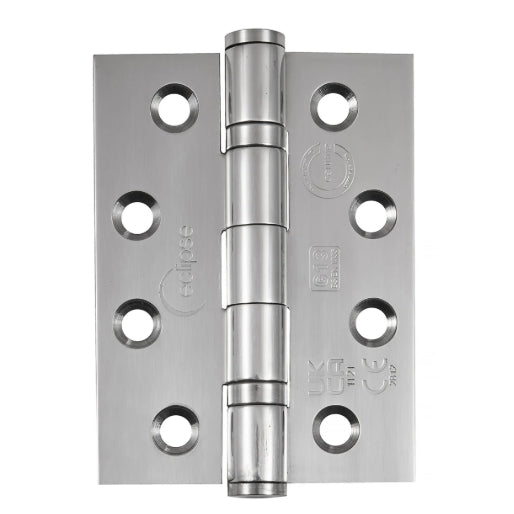

Eclipse Ball Bearing Grade 13 Fire Door Hinge 102 x 76 x 3mm Satin Stainless Steel – Pack of 3

The Eclipse Ball Bearing Grade 13 Fire Door Hinge is a premium heavy-duty hinge designed for use on timber and steel fire doors weighing up to 120kg. Manufactured from high-quality satin stainless steel, these CE, UKCA and Certifire approved hinges deliver exceptional strength, durability, and smooth operation in demanding residential, commercial, and public building environments.

Engineered with a precision ball bearing mechanism, these fire-rated hinges provide effortless door movement, reduce friction and wear, and ensure quieter operation over the lifetime of the door. The innovative welded cap design offers increased durability and enhanced performance, making them ideal for high-traffic applications.

Key Features

• Grade 13 Ball Bearing Fire Door Hinges
• Suitable for timber and steel fire doors up to 120kg
• Durable satin stainless steel finish
• Smooth ball bearing action for quieter door operation
• Reduces hinge wear and extends service life
• Unique welded cap construction for enhanced strength and durability
• Supplied with high-quality fixing screws for faster installation
• Suitable for commercial, residential, educational, healthcare, and public buildings
• Pack of 3 hinges

Fire Door Certification & Compliance

The Eclipse Grade 13 Fire Door Hinge has been independently tested and certified to meet the highest industry standards, providing reliable fire protection and regulatory compliance.

Certifications

• CE Marked
• UKCA Approved
• Certifire Approved
• BS EN 1935 Grade 13

Fire Ratings

• 30 Minute Fire Doors (FD30)
• 60 Minute Fire Doors (FD60)
• 90 Minute Fire Doors (FD90)
• 120 Minute Fire Doors (FD120)
• 240 Minute Steel Fire Doors

Product Specification

• Brand: Eclipse
• Hinge Type: Ball Bearing Butt Hinge
• Grade: 13
• Material: Stainless Steel
• Finish: Satin Stainless Steel

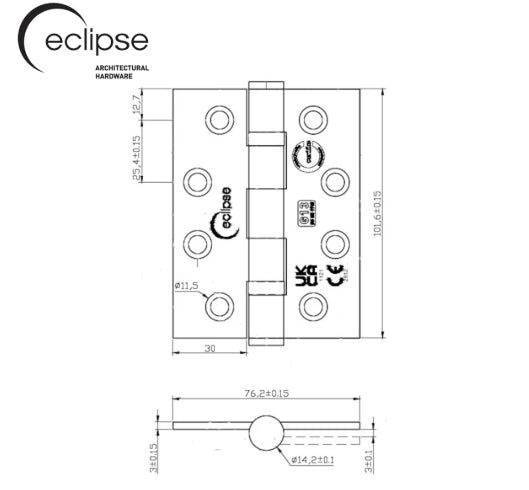

• Dimensions: 102mm x 76mm x 3mm
• Maximum Door Weight: 120kg
• Fire Tested: Up to 240 Minutes
• Certification: CE, UKCA & Certifire
• Supplied: Pack of 3 Hinges with Fixings

Why Choose Eclipse Grade 13 Fire Door Hinges?

Designed for superior performance and long-term reliability, Eclipse Grade 13 Ball Bearing Fire Door Hinges are trusted by contractors, locksmiths, builders, and fire door installers throughout the UK. Their heavy-duty construction, fire door certification, and smooth ball bearing operation make them the ideal choice for maintaining fire door compliance while ensuring reliable everyday use.
